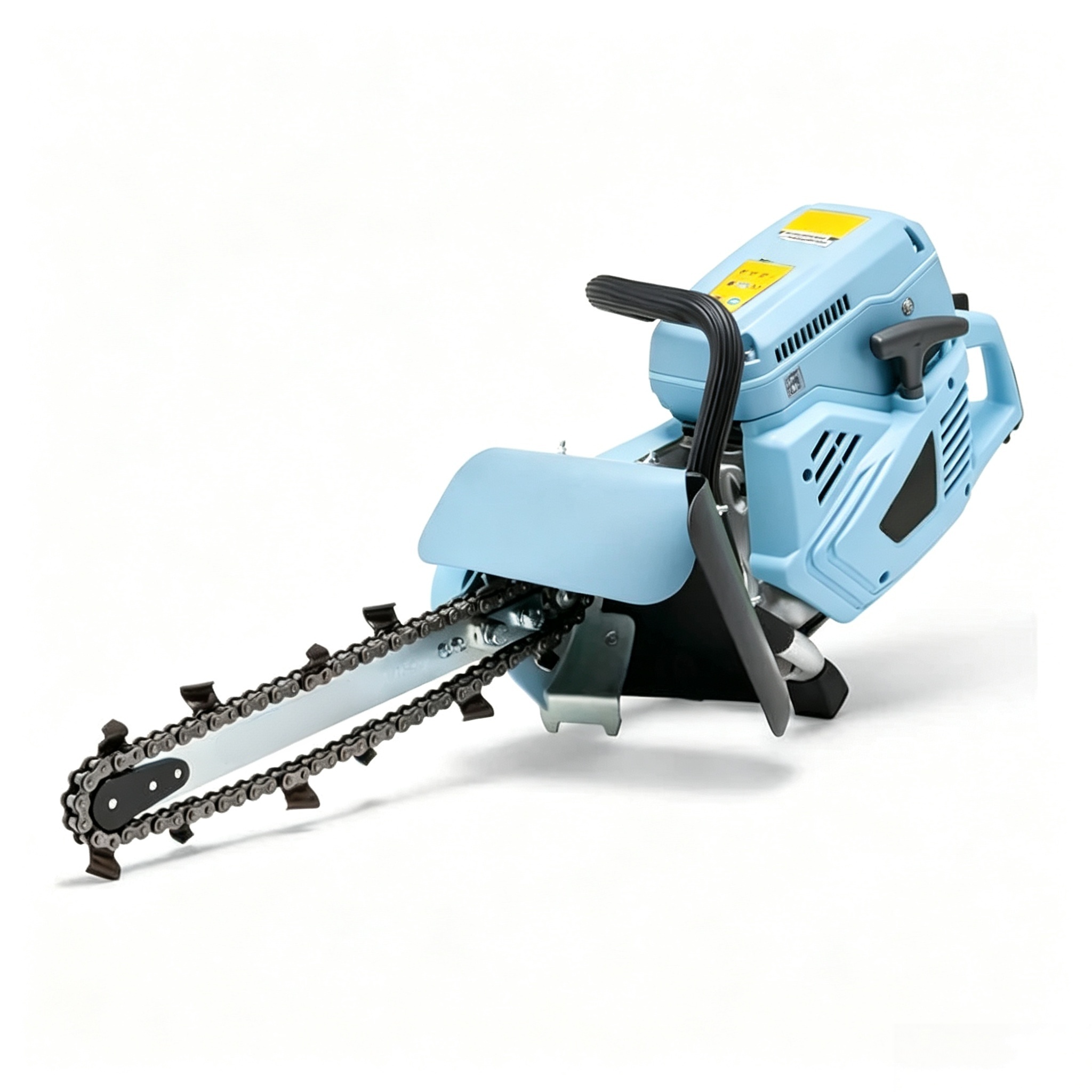

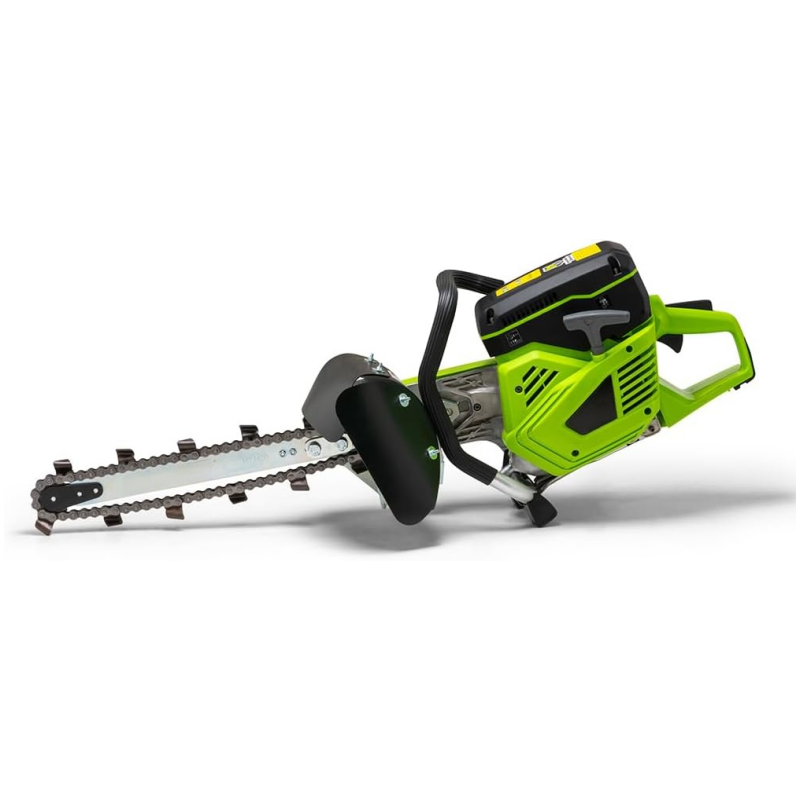

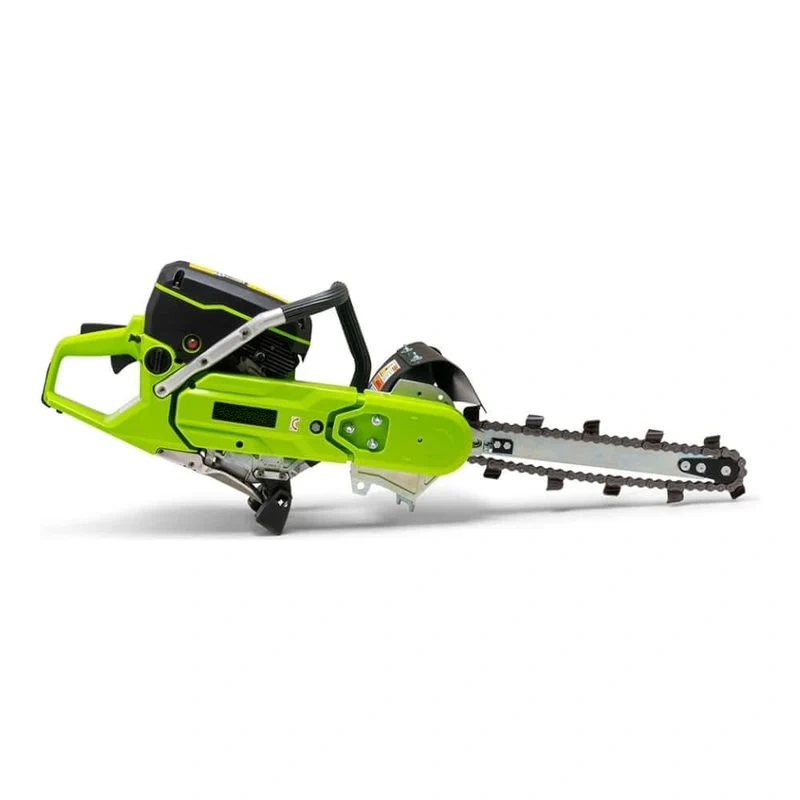

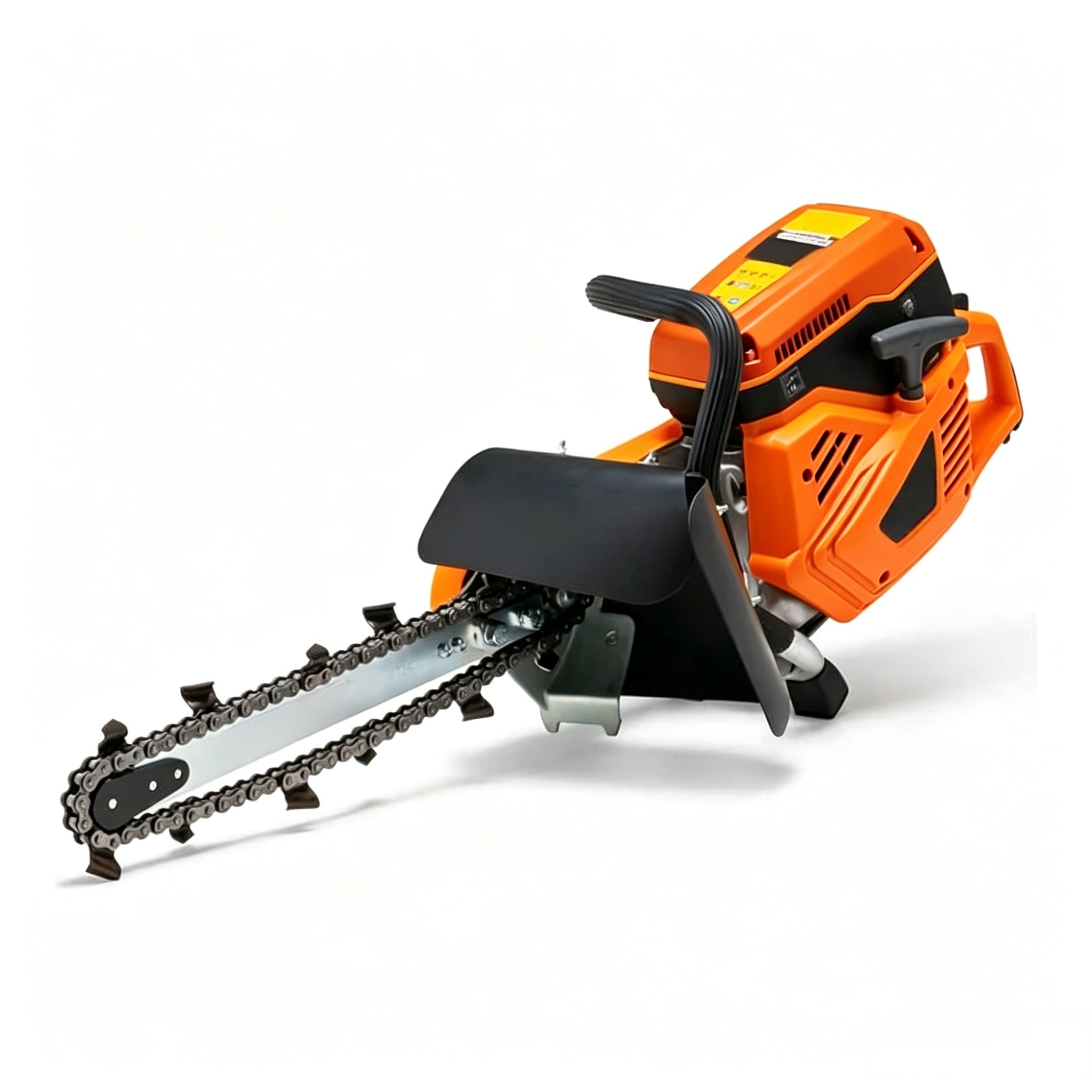

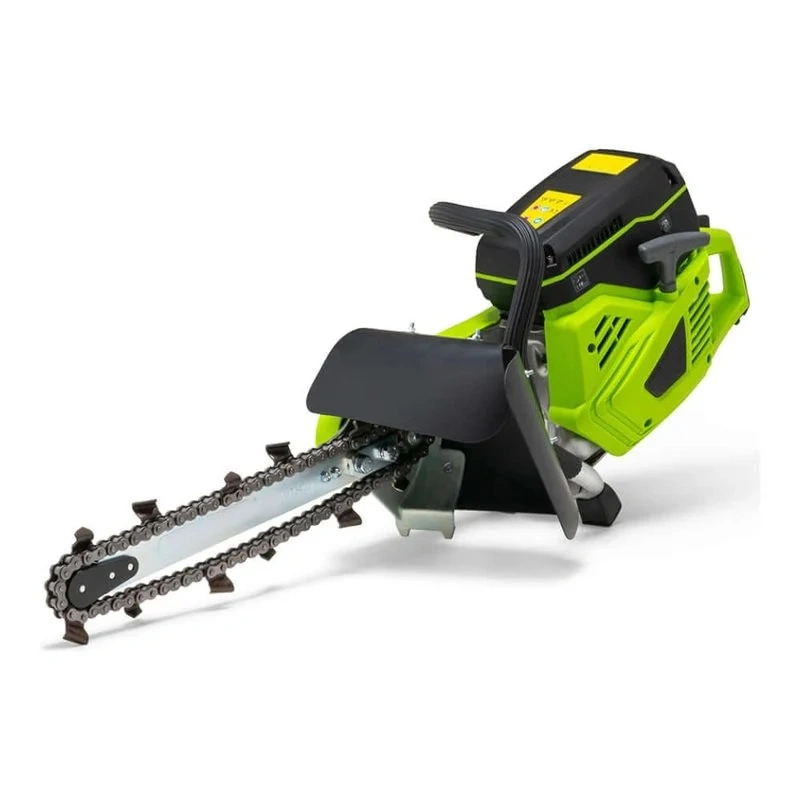

Handheld Mini Trencher
Product Details
Dig narrow, clean trenches for irrigation, lighting, root barriers, pipe, and wire installs without bringing in a full-size trencher. This portable handheld mini trencher is built for jobs where hand digging is too slow and larger trenchers are too bulky. Powered by a 74cc 2-stroke engine delivering 4.7 HP, it digs up to 16 inches deep with a 2-inch digging chain, creating a narrow trench for underground installations while limiting unnecessary turf disruption. Self-sharpening digging chains, spring-loaded vibration control, and Vortex Air Filtration help keep daily trenching work more manageable for crews and landowners.
Product Features
⛏️ 16-Inch Trenching Depth – Digs up to 16 inches deep for irrigation, landscape lighting, root barrier, pipe, and wire applications .
🔄 2-Inch Digging Chain – Creates a narrow trench that fits common underground installation work without opening more ground than needed .
⚙️ 74cc 2-Stroke Engine – The 4.7 HP engine is designed specifically for the stresses of earth digging and everyday narrow trenching .
🪨 Built for Tough Ground Conditions – Self-sharpening digging teeth cut tree roots up to 3 inches below grade and remove rocks up to 4 inches wide .
🖐️ Operator-Focused Design – Features minimal pull-start force, reduced vibration (spring-loaded vibration control system), and compact handling to help make repeated trenching work easier to control .
🌪️ Clean Intake System – Vortex Air Filtration helps maintain engine performance during dusty digging work .
Product Specifications
- Model: Mini Trencher
- Maximum Digging Depth: 16 in. / 400 mm
- Digging Chain Width: 2 in.
- Engine: 74cc 2-stroke engine
- Power Output: 4.7 HP
- Noise Level: 116 dB
- Root Cutting Capability: Tree roots up to 3 in. below grade
- Rock Removal Capability: Rocks up to 4 in. wide
What's Included
- 1 × 74cc 2-Stroke Engine Unit
- 1 × 16" Digging Bar with Nose Bar End Assembly and Nose Sprocket
- 2 × 16" × 2" Digging Chains
- 1 × Additional Drive Belt
- 1 × Nose Bearing
- 1 × Set of Bar End Assembly Screws
- 1 × Engine Tool Kit
- 1 × Chain Connector Link
- 1 × 18mm and 13mm Combination Wrench
- 1 × Owner's Manual
